Chain Plate Roaster
Product Introduction
- Description
-
- Commodity name: Chain Plate Roaster
NutMach Chain Plate Roaster is a high-efficiency, multi-functional machine with built-In cooling system.
The NutMach Chain Plate Roaster is a high-efficiency, multi-functional machine designed for continuous roasting and cooling of peanuts, almonds, cashews, cocoa beans, and other grains or seeds.
It supports multiple heating options—electric, gas, or diesel—and features a fully integrated design that combines roasting and cooling in one compact system.
A powerful hot air circulation system ensures uniform heat distribution and improved thermal efficiency.

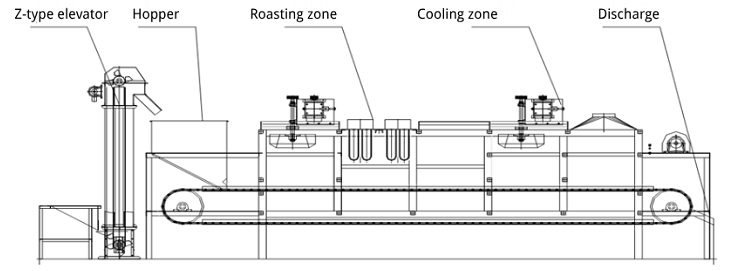

The second half of the roaster includes a dedicated cooling section, enabling a seamless transition to the next processing step, such as peeling or grinding.Working Principle
Key Features
01. Continuous Roasting + Cooling
One integrated line, compact layout, and uninterrupted production.
02. Multi-Heat Source Support
Electric/gas/diesel heating options are available to suit different factory setups.
03. Gas Burner Brand Optional
Italy Riello or Germany Weishaupt are available for gas heating systems.
04 . High-Efficiency Hot Air Circulation
Powerful fans boost airflow for fast, uniform heating and better flavor control.
05. Smart Control
Siemens PLC with a touch screen interface for easy monitoring and adjustment.
06. Food-Grade Construction
304 stainless steel for all contact surfaces; carbon steel frame.Applications
▪ Peanuts
▪ Almonds
▪ Cashew Nuts
▪ Walnuts
▪ Hazelnuts
▪ Macadamia Nuts
▪ Cocoa beans
Models and Technical Parameters
Model Capacity Electric Heating Consumption Natural Gas Consumption Motor Power (kW) Dimensions (mm) Weight (kg) NM-LB-200D 200-250kg/h 45kW/h / 10 6900×1500×2600 2200 NM-LB-200Q 200-250kg/h / 4-5 m³/h 10 6900×1500×2600 2200 NM-LB-300D 300-350kg/h 70kW/h / 10 7500×1500×2600 2800 NM-LB-300Q 300-350kg/h / 6-7.5 m³/h 10 7500×1500×2600 2800 NM-LB-500D 500-600kg/h 115kW/h / 13.5 8500×1950×2800 4200 NM-LB-500Q 500-600kg/h / 10-12.5 m³/h 13.5 8500×1950×2800 4200 NM-LB-1000D 1000-1100kg/h 230kW/h / 15 11000×2100×2600 5400 NM-LB-1000Q 1000-1100kg/h / 20-25 m³/h 15 11000×2100×2600 5400 NM-LB-2000D 2000-2200kg/h 460kW/h / 30 15000×3300×2550 7200 NM-LB-2000Q 2000-2200kg/h / 40-50 m³/h 30 15000×3300×2550 7200 Note:
The heating method can also be customized for diesel heating upon request.
Voltage and frequency can be customized to meet local power requirements.
Output capacity and machine footprint are customizable based on production needs.
For more technical details or customized solutions, please contact us directly.
